Fixed vs. Variable Resistor - What is The Difference?

Fixed resistors maintain a constant resistance value regardless of temperature or voltage changes, providing stability in electrical circuits. Variable resistors allow adjustable resistance, enabling control over current flow in applications like volume knobs or tuning devices. Discover more about the unique roles of fixed and variable resistors in this article.

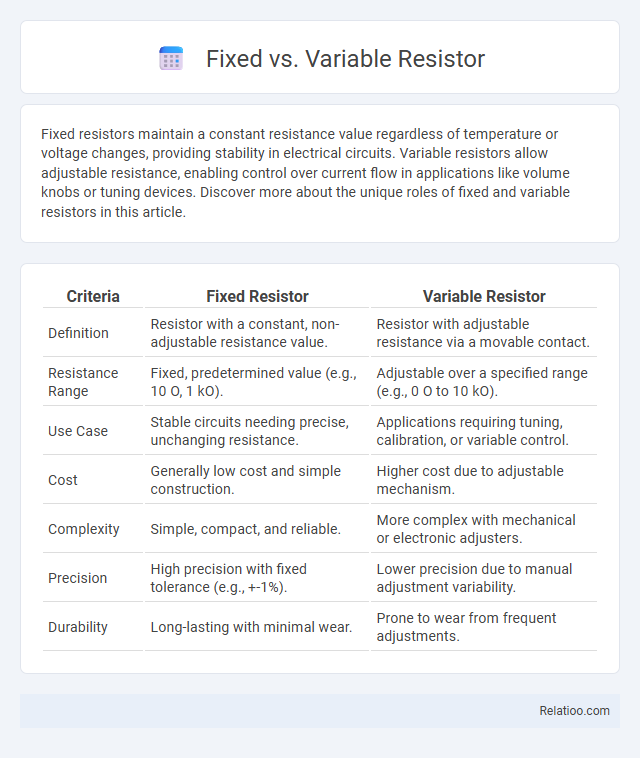

Table of Comparison

Introduction to Resistors

Resistors are fundamental electronic components designed to limit electric current and adjust signal levels in circuits. Fixed resistors have a constant resistance value, while variable resistors allow you to change the resistance to fine-tune circuit performance dynamically. Understanding these differences helps you select the right resistor type for controlling voltage and current effectively in your electronic projects.

What is a Fixed Resistor?

A fixed resistor is an electronic component designed to provide a specific, constant resistance value in electrical circuits, ensuring stable current flow and voltage regulation. Unlike variable resistors, fixed resistors maintain their resistance regardless of external factors like temperature or applied voltage, making them ideal for consistent performance. Understanding how a fixed resistor works will help you select the proper component for your circuit design and optimize its functionality.

Types of Fixed Resistors

Fixed resistors come in various types, including carbon composition, metal film, wire wound, and metal oxide, each offering unique resistance stability and power ratings. Carbon composition resistors are cost-effective with moderate tolerance, while metal film resistors provide higher precision and temperature stability. Your choice of fixed resistor type depends on the electrical requirements and environmental conditions of your specific application.

What is a Variable Resistor?

A variable resistor is an electronic component designed to adjust the resistance within a circuit, allowing precise control over current flow and voltage levels. Unlike fixed resistors with a constant resistance value, variable resistors enable you to modify resistance dynamically through mechanisms like rotating a knob or sliding a contact. This adaptability makes them essential in applications such as volume control, tuning circuits, and light dimmers.

Types of Variable Resistors

Variable resistors come in several types, including potentiometers, rheostats, and trimmers, each designed for precise control of electrical resistance. A potentiometer adjusts voltage within a circuit with three terminals, while a rheostat controls current flow with two terminals, commonly used in dimmers and motor controls. Trimmer resistors are compact, often used for fine-tuning in electronic devices, allowing you to modify resistance values for optimal circuit performance.

Key Differences between Fixed and Variable Resistors

Fixed resistors have a constant resistance value that does not change with voltage or current, commonly used for stable circuit performance. Variable resistors, such as potentiometers or rheostats, allow adjustment of resistance manually or electronically to control current flow or voltage levels dynamically. The key difference lies in their functionality: fixed resistors provide consistent resistance, while variable resistors offer tunable resistance for versatile circuit applications.

Applications of Fixed Resistors

Fixed resistors, characterized by their constant resistance value, are widely used in electronic circuits for current limiting, voltage division, and biasing active components. These components ensure stable operation in power supplies, signal conditioning, and LED circuits by maintaining precise resistance despite temperature or voltage fluctuations. Common applications include setting reference voltages in voltage regulators, protecting circuits from excessive current, and shaping audio signals in amplifiers.

Applications of Variable Resistors

Variable resistors, such as potentiometers and rheostats, are widely used in applications requiring adjustable resistance, including volume controls in audio equipment and light dimmers. Their ability to finely tune resistance makes them essential in calibration and circuit testing where precise control over current flow is necessary. Your projects benefit from variable resistors by allowing dynamic adjustment to optimize performance and adapt to changing conditions.

Advantages and Disadvantages

Fixed resistors provide stable and precise resistance values, ensuring consistent performance in electronic circuits, but lack flexibility for adjustments. Variable resistors, such as potentiometers, offer adjustable resistance, enabling fine-tuning and calibration, though they may introduce noise and reduced reliability over time. Resistors as a general category serve essential roles in current limiting and voltage division, with careful selection required to balance between fixed precision and variable adaptability depending on application needs.

Choosing the Right Resistor for Your Circuit

Choosing the right resistor for your circuit depends on application requirements such as stability, precision, and adjustability. Fixed resistors provide a constant resistance value ideal for simple, stable circuits, while variable resistors (potentiometers or rheostats) allow tuning and calibration in circuits requiring adjustable resistance. Consider factors like power rating, tolerance, and temperature coefficient to ensure optimal performance and longevity in your electronic design.
